IfcPresentationItem

Natural language names
dePräsentationselement
enPresentation Item
frItem de présentation
Change log
ItemSPFXMLChangeDescription
IFC2x3 to IFC4
    IfcPresentationItemADDED
Semantic definitions at the entity
Entity definition

The IfcPresentationItem is the abstract supertype of all entities used for presentation appearance definitions.

HISTORY  New entity in IFC4.
Inherited definitions from supertypes

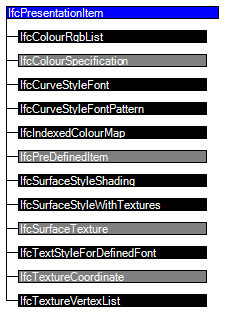

Entity inheritance IfcColourRgbList IfcColourSpecification IfcCurveStyleFont IfcCurveStyleFontPattern IfcIndexedColourMap IfcPreDefinedItem IfcSurfaceStyleShading IfcSurfaceStyleWithTextures IfcSurfaceTexture IfcTextStyleForDefinedFont IfcTextureCoordinate IfcTextureVertexList
Attribute inheritance
#AttributeTypeCardinalityDescriptionB
IfcPresentationItem
Formal representations
XSD Specification
 <xs:element name="IfcPresentationItem" type="ifc:IfcPresentationItem" abstract="true" substitutionGroup="ifc:Entity" nillable="true"/>
 <xs:complexType name="IfcPresentationItem" abstract="true">
  <xs:complexContent>
   <xs:extension base="ifc:Entity"/>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcPresentationItem
 ABSTRACT SUPERTYPE OF(ONEOF(IfcColourRgbList, IfcColourSpecification, IfcCurveStyleFont, IfcCurveStyleFontPattern, IfcIndexedColourMap, IfcPreDefinedItem, IfcSurfaceStyleShading, IfcSurfaceStyleWithTextures, IfcSurfaceTexture, IfcTextStyleForDefinedFont, IfcTextureCoordinate, IfcTextureVertexList));
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram
