![]() | Bauteil / Bauelement |
![]() | Building Element |
![]() | Elément de construction |
The building element comprises all elements that are primarily part of the construction of a building, i.e., its structural and space separating system. Building elements are all physically existent and tangible things
NOTE Definition from ISO 6707-1:
Major functional part of a building, examples are foundation, floor, roof, wall.
This IfcBuildingElement is a generalization of all elements that participate in a building system. Typical examples of IfcBuildingElement 's are (among others):
EXAMPLE Building elements are walls, curtain wall, doors, columns, pile, and others.
The IfcBuildingElement is an abstract entity that cannot be instantiated. For arbitrary building elements, that cannot be expressed by a subtype of IfcBuildingElement, use IfcBuildingElementProxy.
HISTORY New entity in IFC1.0
Rule | Description |
---|---|
MaxOneMaterialAssociation | There should be only a maximum of one material association assigned to an building element.
NOTE The material association can assign a single material, a set of materials, a set of material layers, or a set of material profiles by a single association relationship. FC2x4 CHANGE The where rule has been promoted from the subtype IfcWall. |
# | Attribute | Type | Cardinality | Description | B |
---|---|---|---|---|---|
IfcRoot | |||||
1 | GlobalId | IfcGloballyUniqueId | [1:1] | Assignment of a globally unique identifier within the entire software world. | X |
2 | OwnerHistory | IfcOwnerHistory | [0:1] |
Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE only the last modification in stored - either as addition, deletion or modification. | X |
3 | Name | IfcLabel | [0:1] | Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. | X |
4 | Description | IfcText | [0:1] | Optional description, provided for exchanging informative comments. | X |
IfcObjectDefinition | |||||
HasAssignments | IfcRelAssigns @RelatedObjects | S[0:?] | Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups. | X | |
Nests | IfcRelNests @RelatedObjects | S[0:1] | References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only). | ||
IsNestedBy | IfcRelNests @RelatingObject | S[0:?] | References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types). | X | |
HasContext | IfcRelDeclares @RelatedDefinitions | S[0:1] | References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object. | ||
IsDecomposedBy | IfcRelAggregates @RelatingObject | S[0:?] | References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts). | X | |
Decomposes | IfcRelAggregates @RelatedObjects | S[0:1] | References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only). | X | |
HasAssociations | IfcRelAssociates @RelatedObjects | S[0:?] | Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification. | X | |
IfcObject | |||||
5 | ObjectType | - | This attribute is out of scope for this model view definition and shall not be set. | ||
IsTypedBy | IfcRelDefinesByType @RelatedObjects | S[0:1] | Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type. | X | |
IsDefinedBy | IfcRelDefinesByProperties @RelatedObjects | S[0:?] | Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object. | X | |
IfcProduct | |||||
6 | ObjectPlacement | IfcObjectPlacement | [0:1] | Placement of the product in space, the placement can either be absolute (relative to the world coordinate system), relative (relative to the object placement of another product), or constraint (e.g. relative to grid axes). It is determined by the various subtypes of IfcObjectPlacement, which includes the axis placement information to determine the transformation for the object coordinate system. | X |
7 | Representation | IfcProductRepresentation | [0:1] | Reference to the representations of the product, being either a representation (IfcProductRepresentation) or as a special case a shape representations (IfcProductDefinitionShape). The product definition shape provides for multiple geometric representations of the shape property of the object within the same object coordinate system, defined by the object placement. | X |
ReferencedBy | IfcRelAssignsToProduct @RelatingProduct | S[0:?] | Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product. | X | |
IfcElement | |||||
8 | Tag | IfcIdentifier | [0:1] | The tag (or label) identifier at the particular instance of a product, e.g. the serial number, or the position number. It is the identifier at the occurrence level. | X |
ConnectedTo | IfcRelConnectsElements @RelatingElement | S[0:?] | Reference to the element connection relationship. The relationship then refers to the other element to which this element is connected to. | ||
HasOpenings | IfcRelVoidsElement @RelatingBuildingElement | S[0:?] | Reference to the IfcRelVoidsElement relationship that creates an opening in an element. An element can incorporate zero-to-many openings. For each opening, that voids the element, a new relationship IfcRelVoidsElement is generated. | X | |
ConnectedFrom | IfcRelConnectsElements @RelatedElement | S[0:?] | Reference to the element connection relationship. The relationship then refers to the other element that is connected to this element. | X | |
ContainedInStructure | IfcRelContainedInSpatialStructure @RelatedElements | S[0:1] | Containment relationship to the spatial structure element, to which the element is primarily associated. This containment relationship has to be hierachical, i.e. an element may only be assigned directly to zero or one spatial structure. | ||
PositionedFrom | IfcRelPositions @RelatingElement | S[0:1] | Indicates a constrained placement, where the ObjectPosition must match positioning defined according to the referenced positioning element. | X | |
IfcBuildingElement |
# | Concept | Model View |
---|---|---|
IfcRoot | ||
Software Identity | Bridge View | |
User Identity | Bridge View | |
Object Ownership | Bridge View | |
IfcObject | ||
Property Sets for Objects | Bridge View | |
IfcElement | ||
Element Occurrence Attributes | Bridge View | |
Product Local Placement | Bridge View | |
Product Assignment | Bridge View |
<xs:element name="IfcBuildingElement" type="ifc:IfcBuildingElement" abstract="true" substitutionGroup="ifc:IfcElement" nillable="true"/>
<xs:complexType name="IfcBuildingElement" abstract="true">
<xs:complexContent>
<xs:extension base="ifc:IfcElement"/>
</xs:complexContent>
</xs:complexType>
ENTITY IfcBuildingElement

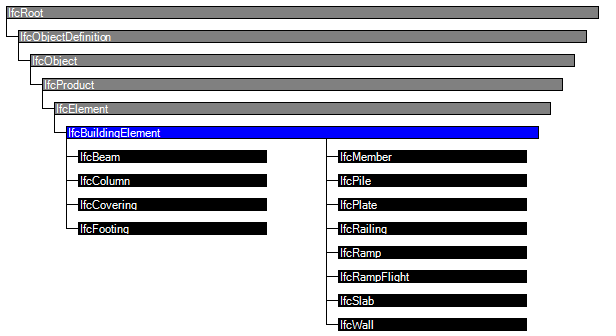

ABSTRACT SUPERTYPE OF(ONEOF(IfcBeam, IfcColumn, IfcCovering, IfcFooting, IfcMember, IfcPile, IfcPlate, IfcRailing, IfcRamp, IfcRampFlight, IfcSlab, IfcWall))
SUBTYPE OF (IfcElement);
WHERE
MaxOneMaterialAssociation : SIZEOF (QUERY(temp <* SELF\IfcObjectDefinition.HasAssociations |
'IFCPRODUCTEXTENSION.IFCRELASSOCIATESMATERIAL' IN TYPEOF(temp)
)) <= 1;
END_ENTITY;
