Natural language names
 | Anschluss |
 | Port |
 | Port |
| Anschluss |
| Port |
| Port |
A port provides the means for an element to connect to other elements.
An IfcPort is associated with an IfcElement, it belongs to through the objectified relationship IfcRelNests if such port is fixed, or IfcRelConnectsPortToElement if such port is dynamically attached. Exactly two ports, belonging to two different elements, are connected with each other through the objectified relationship IfcRelConnectsPorts.
An instance of IfcElement may have one or more points at which it connects to other instances of IfcElement. An instance of em>IfcPort is located at a point where a connection can occur. The location of the port is determined in the context of the local coordinate system of the element to which it belongs. As a subordinate part being fully dependent on the master element the IfcPort shall have no independent containment relationship to the spatial structure.
The local placement for IfcPort is defined in its supertype IfcProduct. It is defined by the IfcLocalPlacement, which defines the local coordinate system that is referenced by all geometric representations. The PlacementRelTo relationship of IfcLocalPlacement shall point to the local placement of the master IfcElement or IfcElementType (relevant subtypes), which is related to the IfcPort by the relationship object IfcRelNests for fixed ports, or IfcRelConnectsPortToElement for dynamic ports.
HISTORY New entity in IFC2x2.
| # | Attribute | Type | Cardinality | Description | B |
|---|---|---|---|---|---|
| ConnectedFrom | IfcRelConnectsPorts @RelatedPort | S[0:1] | Reference to a port that is connected by the objectified relationship. | X | |
| ConnectedTo | IfcRelConnectsPorts @RelatingPort | S[0:1] | Reference to the port connection relationship. The relationship then refers to the other port to which this port is connected. | X |
| # | Attribute | Type | Cardinality | Description | B |
|---|---|---|---|---|---|
| IfcRoot | |||||
| 1 | GlobalId | IfcGloballyUniqueId | [1:1] | Assignment of a globally unique identifier within the entire software world. | X |
| 2 | OwnerHistory | IfcOwnerHistory | [0:1] |
Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE only the last modification in stored - either as addition, deletion or modification. | X |
| 3 | Name | IfcLabel | [0:1] | Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. | X |
| 4 | Description | IfcText | [0:1] | Optional description, provided for exchanging informative comments. | X |
| IfcObjectDefinition | |||||
| HasAssignments | IfcRelAssigns @RelatedObjects | S[0:?] | Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups. | X | |
| Nests | IfcRelNests @RelatedObjects | S[0:1] | References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only). | ||
| IsNestedBy | IfcRelNests @RelatingObject | S[0:?] | References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types). | X | |
| HasContext | IfcRelDeclares @RelatedDefinitions | S[0:1] | References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object. | ||
| IsDecomposedBy | IfcRelAggregates @RelatingObject | S[0:?] | References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts). | X | |
| Decomposes | IfcRelAggregates @RelatedObjects | S[0:1] | References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only). | X | |
| HasAssociations | IfcRelAssociates @RelatedObjects | S[0:?] | Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification. | X | |
| IfcObject | |||||
| 5 | ObjectType | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| IsTypedBy | IfcRelDefinesByType @RelatedObjects | S[0:1] | Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type. | X | |
| IsDefinedBy | IfcRelDefinesByProperties @RelatedObjects | S[0:?] | Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object. | X | |
| IfcProduct | |||||
| 6 | ObjectPlacement | IfcObjectPlacement | [0:1] | Placement of the product in space, the placement can either be absolute (relative to the world coordinate system), relative (relative to the object placement of another product), or constraint (e.g. relative to grid axes). It is determined by the various subtypes of IfcObjectPlacement, which includes the axis placement information to determine the transformation for the object coordinate system. | X |
| 7 | Representation | IfcProductRepresentation | [0:1] | Reference to the representations of the product, being either a representation (IfcProductRepresentation) or as a special case a shape representations (IfcProductDefinitionShape). The product definition shape provides for multiple geometric representations of the shape property of the object within the same object coordinate system, defined by the object placement. | X |
| ReferencedBy | IfcRelAssignsToProduct @RelatingProduct | S[0:?] | Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product. | X | |
| IfcPort | |||||
| ConnectedFrom | IfcRelConnectsPorts @RelatedPort | S[0:1] | Reference to a port that is connected by the objectified relationship. | X | |
| ConnectedTo | IfcRelConnectsPorts @RelatingPort | S[0:1] | Reference to the port connection relationship. The relationship then refers to the other port to which this port is connected. | X | |
| # | Concept | Model View |
|---|---|---|
| IfcRoot | ||
| Software Identity | Bridge View | |
| User Identity | Bridge View | |
| Object Ownership | Bridge View | |
| IfcObject | ||
| Property Sets for Objects | Bridge View | |
<xs:element name="IfcPort" type="ifc:IfcPort" abstract="true" substitutionGroup="ifc:IfcProduct" nillable="true"/>
<xs:complexType name="IfcPort" abstract="true">
<xs:complexContent>
<xs:extension base="ifc:IfcProduct"/>
</xs:complexContent>
</xs:complexType>
ENTITY IfcPort

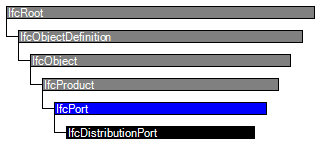

ABSTRACT SUPERTYPE OF(IfcDistributionPort)
SUBTYPE OF (IfcProduct);
INVERSE
ConnectedFrom : SET [0:1] OF IfcRelConnectsPorts FOR RelatedPort;
ConnectedTo : SET [0:1] OF IfcRelConnectsPorts FOR RelatingPort;
END_ENTITY;
EXPRESS-G diagram
