IfcPositioningElement

Natural language names
Change log
ItemSPFXMLChangeDescription
IFC4 ADD1 to IFC4x1
    IfcPositioningElementADDED
Semantic definitions at the entity
Entity definition

New and abstract entity definition for positioning and annotating elements that are used to position other elements relatively.

EXAMPLE  A grid is a positioning element to position building components mainly in vertical structures, an alignment is a linear positioning element to position geographic and civil elements mainly in infrastructure works.
EXAMPLE  An alignment is a linear positioning element for using a linear referencing method to position other items. See ISO 19148 “Linear referencing” for general information about linear referencing methods and expressions.
Attribute definitions
#AttributeTypeCardinalityDescription B
PositionsElementsIfcRelPositions
@RelatedPositioningElement
S[:?]Elements positioned by this definition.
Inherited definitions from supertypes

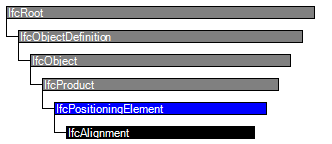

Entity inheritance IfcAlignment IfcProduct IfcObject IfcObjectDefinition IfcRoot
Attribute inheritance
#AttributeTypeCardinalityDescriptionB
IfcRoot
1GlobalIdIfcGloballyUniqueId[1:1] Assignment of a globally unique identifier within the entire software world. X
2OwnerHistoryIfcOwnerHistory[0:1] Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE  only the last modification in stored - either as addition, deletion or modification.
X
3NameIfcLabel[0:1] Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. X
4DescriptionIfcText[0:1] Optional description, provided for exchanging informative comments.X
IfcObjectDefinition
HasAssignmentsIfcRelAssigns
@RelatedObjects
S[0:?]Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.X
NestsIfcRelNests
@RelatedObjects
S[0:1]References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).
IsNestedByIfcRelNests
@RelatingObject
S[0:?]References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types). X
HasContextIfcRelDeclares
@RelatedDefinitions
S[0:1]References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.
IsDecomposedByIfcRelAggregates
@RelatingObject
S[0:?]References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts). X
DecomposesIfcRelAggregates
@RelatedObjects
S[0:1]References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only). X
HasAssociationsIfcRelAssociates
@RelatedObjects
S[0:?]Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification.X
IfcObject
5ObjectType- This attribute is out of scope for this model view definition and shall not be set.
IsTypedByIfcRelDefinesByType
@RelatedObjects
S[0:1]Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type. X
IsDefinedByIfcRelDefinesByProperties
@RelatedObjects
S[0:?]Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object. X
IfcProduct
6ObjectPlacementIfcObjectPlacement[0:1] Placement of the product in space, the placement can either be absolute (relative to the world coordinate system), relative (relative to the object placement of another product), or constraint (e.g. relative to grid axes). It is determined by the various subtypes of IfcObjectPlacement, which includes the axis placement information to determine the transformation for the object coordinate system.X
7RepresentationIfcProductRepresentation[0:1] Reference to the representations of the product, being either a representation (IfcProductRepresentation) or as a special case a shape representations (IfcProductDefinitionShape). The product definition shape provides for multiple geometric representations of the shape property of the object within the same object coordinate system, defined by the object placement.X
ReferencedByIfcRelAssignsToProduct
@RelatingProduct
S[0:?]Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product.X
IfcPositioningElement
PositionsElementsIfcRelPositions
@RelatedPositioningElement
S[:?]Elements positioned by this definition.
Definitions applying to Bridge View

Concept inheritance

#ConceptModel View
IfcRoot
Software IdentityBridge View
User IdentityBridge View
Object OwnershipBridge View
IfcObject
Property Sets for ObjectsBridge View
Formal representations
XSD Specification
 <xs:element name="IfcPositioningElement" type="ifc:IfcPositioningElement" abstract="true" substitutionGroup="ifc:IfcProduct" nillable="true"/>
 <xs:complexType name="IfcPositioningElement" abstract="true">
  <xs:complexContent>
   <xs:extension base="ifc:IfcProduct"/>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcPositioningElement
 ABSTRACT SUPERTYPE OF(IfcAlignment)
 SUBTYPE OF (IfcProduct);
 INVERSE
  PositionsElements : SET [:?] OF IfcRelPositions FOR RelatedPositioningElement;
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram
