Natural language names
 | haustechnische Anlage |
 | Distribution System |
 | Système de distribution |
| haustechnische Anlage |
| Distribution System |
| Système de distribution |
| Item | SPF | XML | Change | Description | IFC2x3 to IFC4 |
|---|---|---|---|---|
| IfcDistributionSystem | ADDED |
A distribution system is a network designed to receive, store, maintain, distribute, or control the flow of a distribution media. A common example is a heating hot water system that consists of a pump, a tank, and an interconnected piping system for distributing hot water to terminals.
The group IfcDistributionSystem defines the occurrence of a specialized system for use within the context of building services.
Important functionalities for the description of a distribution system are derived from existing IFC entities:
HISTORY New entity in IFC4.
IFC4 CHANGE For electrical power systems, IfcElectricalCircuit has been used for low-voltage (12-1000 V) power circuits and has been replaced by IfcDistributionCircuit in IFC4; IfcDistributionSystem with PredefinedType 'ELECTRICAL' should be used for overall power systems, and IfcDistributionCircuit with PredefinedType 'ELECTRICAL' should be used for each switched circuit.
| # | Attribute | Type | Cardinality | Description | B |
|---|---|---|---|---|---|
| 6 | LongName | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 7 | PredefinedType | IfcDistributionSystemEnum | [0:1] | Predefined types of distribution systems. | X |
| # | Attribute | Type | Cardinality | Description | B |
|---|---|---|---|---|---|
| IfcRoot | |||||
| 1 | GlobalId | IfcGloballyUniqueId | [1:1] | Assignment of a globally unique identifier within the entire software world. | X |
| 2 | OwnerHistory | IfcOwnerHistory | [0:1] |
Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE only the last modification in stored - either as addition, deletion or modification. | X |
| 3 | Name | IfcLabel | [0:1] | Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. | X |
| 4 | Description | IfcText | [0:1] | Optional description, provided for exchanging informative comments. | X |
| IfcObjectDefinition | |||||
| HasAssignments | IfcRelAssigns @RelatedObjects | S[0:?] | Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups. | X | |
| Nests | IfcRelNests @RelatedObjects | S[0:1] | References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only). | ||
| IsNestedBy | IfcRelNests @RelatingObject | S[0:?] | References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types). | X | |
| HasContext | IfcRelDeclares @RelatedDefinitions | S[0:1] | References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object. | ||
| IsDecomposedBy | IfcRelAggregates @RelatingObject | S[0:?] | References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts). | X | |
| Decomposes | IfcRelAggregates @RelatedObjects | S[0:1] | References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only). | X | |
| HasAssociations | IfcRelAssociates @RelatedObjects | S[0:?] | Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification. | X | |
| IfcObject | |||||
| 5 | ObjectType | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| IsTypedBy | IfcRelDefinesByType @RelatedObjects | S[0:1] | Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type. | X | |
| IsDefinedBy | IfcRelDefinesByProperties @RelatedObjects | S[0:?] | Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object. | X | |
| IfcGroup | |||||
| IsGroupedBy | IfcRelAssignsToGroup @RelatingGroup | S[0:?] | Reference to the relationship IfcRelAssignsToGroup that assigns the one to many group members to the IfcGroup object. | X | |
| IfcSystem | |||||
| IfcDistributionSystem | |||||
| 6 | LongName | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 7 | PredefinedType | IfcDistributionSystemEnum | [0:1] | Predefined types of distribution systems. | X |
| # | Concept | Model View |
|---|---|---|
| IfcRoot | ||
| Software Identity | Bridge View | |
| User Identity | Bridge View | |
| Object Ownership | Bridge View | |
| IfcObject | ||
| Property Sets for Objects | Bridge View | |
<xs:element name="IfcDistributionSystem" type="ifc:IfcDistributionSystem" substitutionGroup="ifc:IfcSystem" nillable="true"/>
<xs:complexType name="IfcDistributionSystem">
<xs:complexContent>
<xs:extension base="ifc:IfcSystem">
<xs:attribute name="PredefinedType" type="ifc:IfcDistributionSystemEnum" use="optional"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
ENTITY IfcDistributionSystem
SUBTYPE OF (IfcSystem);
LongName : OPTIONAL IfcStrippedOptional;
PredefinedType : OPTIONAL IfcDistributionSystemEnum;
END_ENTITY;

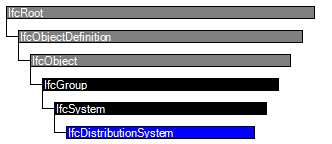

EXPRESS-G diagram
