A building represents a structure that provides shelter for its occupants or contents and stands in one place. The building is also used to provide a basic element within the spatial structure hierarchy for the components of a building project (together with site, storey, and space).

NOTE Definition from ISO 6707-1:
Construction work that has the provision of shelter for its occupants or contents as one of its main purpose and is normally designed to stand permanently in one place.

A building is (if specified) associated to a site. A building may span over several connected or disconnected buildings. Therefore building complex provides for a collection of buildings included in a site. A building can also be decomposed in (vertical) parts, where each part defines a building section. This is defined by the composition type attribute of the supertype IfcSpatialStructureElements which is interpreted as follow:

COMPLEX: building complex
ELEMENT: building
PARTIAL: building section

The IfcBuilding is used to build the spatial structure of a building (that serves as the primary project breakdown and is required to be hierarchical). The spatial structure elements are linked together by using the objectified relationship IfcRelAggregates.

HISTORY New entity in IFC1.0.

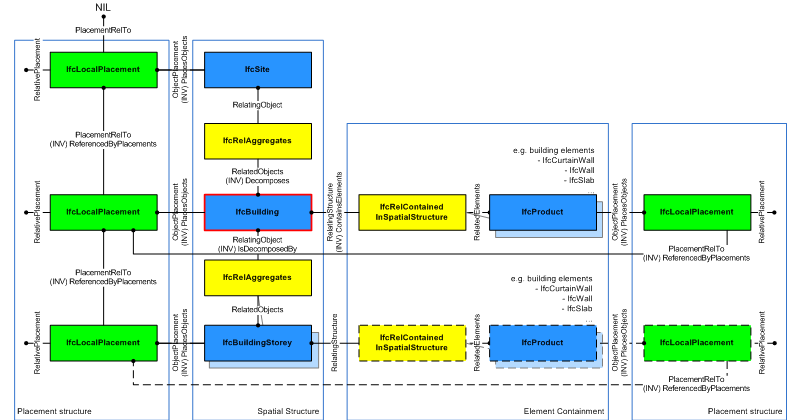

Figure 27 shows the IfcBuilding as part of the spatial structure. It also serves as the spatial container for building and other elements.

NOTE Detailed requirements on mandatory element containment and placement structure relationships are given in view definitions and implementer agreements.

IfcBuildingStorey as part of a spatial structure

Figure 27 — Building composition

Systems, such as building service or electrical distribution systems, zonal systems, or structural analysis systems, relate to IfcBuilding by using the objectified relationship IfcRelServicesBuildings.

Attribute Use Definition

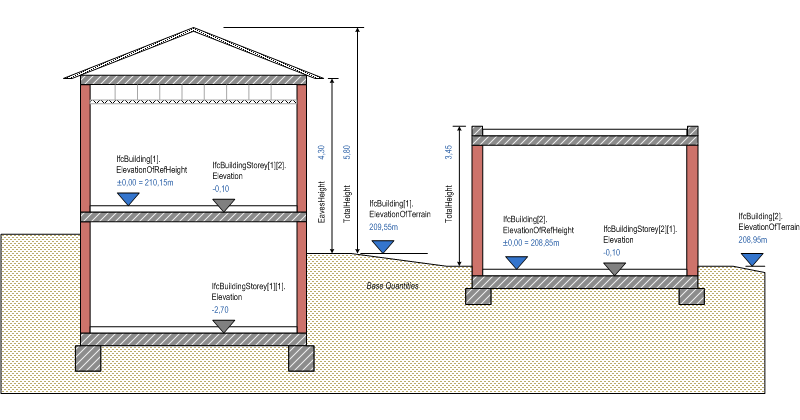

Figure 28 describes the heights and elevations of the IfcBuilding. It is used to provide the height above sea level of the project height datum for this building, that is, the internal height 0.00. The height 0.00 is often used as a building internal reference height and equal to the floor finish level of the ground floor.

base elevation of building provided by: IfcBuilding.ElevationOfRefHeight, it is usually the top of construction slab
base elevation of terrain at the perimeter of the building provided by: IfcBuilding.ElevationOfTerrain, it is usually the minimum elevation is sloped terrain
total height of building, also referred to as ridge height (top of roof structure, e.g the ridge against terrain): provided by BaseQuantity with Name="TotalHeight"
eaves height of building (base of roof structure, e.g the eaves against terrain): provided by BaseQuantity with Name="EavesHeight"

Figure 28 — Building elevations

Construction Operations

Instance diagram

Identity

The Identity concept applies to this entity.

Exchange
Import	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R
Export	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R	R

Revision Control

The Revision Control concept applies to this entity.

Exchange
Import	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O
Export	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O

Classification

The Classification concept applies to this entity as shown in Table 14.

Source Name Tokens Description

Construction Specifications Institute OmniClass Table 11 11-00 00 00 Construction Entities by Function

Table 14 — IfcBuilding Classification

Exchange

Import O O O O O O O O O O O O O O O O O O O O O O O O O O O O

Export O O O O O O O O O O O O O O O O O O O O O O O O O O O O

Spatial Composition

The Spatial Composition concept applies to this entity as shown in Table 15.

Spatial Composite Description

A building is contained within a site, where COBie has a restriction of one building per site and one site per project.

Table 15 — IfcBuilding Spatial Composition

Exchange

Import R R R R R R R R R R R R R R R R R R R R R R R R R R R R

Export R R R R R R R R R R R R R R R R R R R R R R R R R R R R

XSD Specification:

<xs:element name="IfcBuilding" type="ifc:IfcBuilding" substitutionGroup="ifc:IfcSpatialStructureElement" nillable="true"/>
<xs:complexType name="IfcBuilding">
  <xs:complexContent>
   <xs:extension base="ifc:IfcSpatialStructureElement"/>
  </xs:complexContent>
</xs:complexType>

EXPRESS Specification:

ENTITY IfcBuilding

SUBTYPE OF (IfcSpatialStructureElement);

ElevationOfRefHeight	:	OPTIONAL IfcStrippedOptional;
ElevationOfTerrain	:	OPTIONAL IfcStrippedOptional;
BuildingAddress	:	OPTIONAL IfcStrippedOptional;

END_ENTITY;

Attribute Definitions:

ElevationOfRefHeight	:	Elevation above sea level of the reference height used for all storey elevation measures, equals to height 0.0. It is usually the ground floor level.
ElevationOfTerrain	:	Elevation above the minimal terrain level around the foot print of the building, given in elevation above sea level.
BuildingAddress	:	Address given to the building for postal purposes.

Inheritance Graph:

ENTITY IfcBuilding

ENTITY IfcRoot

GlobalId	:	IfcGloballyUniqueId;
OwnerHistory	:	OPTIONAL IfcOwnerHistory;
Name	:	OPTIONAL IfcLabel;
Description	:	OPTIONAL IfcText;

ENTITY IfcObjectDefinition

INVERSE

HasAssignments	:	SET OF IfcRelAssigns FOR RelatedObjects;
HasContext	:	SET [0:1] OF IfcRelDeclares FOR RelatedDefinitions;
IsDecomposedBy	:	SET OF IfcRelAggregates FOR RelatingObject;
Decomposes	:	SET [0:1] OF IfcRelAggregates FOR RelatedObjects;
HasAssociations	:	SET OF IfcRelAssociates FOR RelatedObjects;
