IfcPlateStandardCase

Rule	Description
HasMaterialLayerSetUsage	A valid instance of IfcPlateStandardCase relies on the provision of an IfcMaterialLayerSetUsage.

Inherited definitions from supertypes

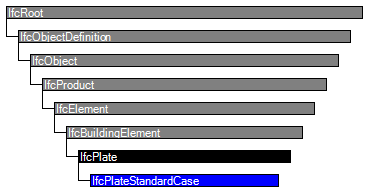

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	B
IfcRoot
1	GlobalId	IfcGloballyUniqueId	[1:1]	Assignment of a globally unique identifier within the entire software world.	X
2	OwnerHistory	IfcOwnerHistory	[0:1]	Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object, NOTE only the last modification in stored - either as addition, deletion or modification.	X
3	Name	IfcLabel	[0:1]	Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule.	X
4	Description	IfcText	[0:1]	Optional description, provided for exchanging informative comments.	X
IfcObjectDefinition
	HasAssignments	IfcRelAssigns @RelatedObjects	S[0:?]	Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.	X
	Nests	IfcRelNests @RelatedObjects	S[0:1]	References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).
	IsNestedBy	IfcRelNests @RelatingObject	S[0:?]	References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).	X
	HasContext	IfcRelDeclares @RelatedDefinitions	S[0:1]	References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.
	IsDecomposedBy	IfcRelAggregates @RelatingObject	S[0:?]	References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).	X
	Decomposes	IfcRelAggregates @RelatedObjects	S[0:1]	References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).	X
	HasAssociations	IfcRelAssociates @RelatedObjects	S[0:?]	Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification.	X
IfcObject
5	ObjectType	-		This attribute is out of scope for this model view definition and shall not be set.
	IsTypedBy	IfcRelDefinesByType @RelatedObjects	S[0:1]	Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type.	X
	IsDefinedBy	IfcRelDefinesByProperties @RelatedObjects	S[0:?]	Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object.	X
IfcProduct
6	ObjectPlacement	IfcObjectPlacement	[0:1]	Placement of the product in space, the placement can either be absolute (relative to the world coordinate system), relative (relative to the object placement of another product), or constraint (e.g. relative to grid axes). It is determined by the various subtypes of IfcObjectPlacement, which includes the axis placement information to determine the transformation for the object coordinate system.	X
7	Representation	IfcProductRepresentation	[0:1]	Reference to the representations of the product, being either a representation (IfcProductRepresentation) or as a special case a shape representations (IfcProductDefinitionShape). The product definition shape provides for multiple geometric representations of the shape property of the object within the same object coordinate system, defined by the object placement.	X
	ReferencedBy	IfcRelAssignsToProduct @RelatingProduct	S[0:?]	Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product.	X
IfcElement
8	Tag	IfcIdentifier	[0:1]	The tag (or label) identifier at the particular instance of a product, e.g. the serial number, or the position number. It is the identifier at the occurrence level.	X
	ConnectedTo	IfcRelConnectsElements @RelatingElement	S[0:?]	Reference to the element connection relationship. The relationship then refers to the other element to which this element is connected to.
	HasOpenings	IfcRelVoidsElement @RelatingBuildingElement	S[0:?]	Reference to the IfcRelVoidsElement relationship that creates an opening in an element. An element can incorporate zero-to-many openings. For each opening, that voids the element, a new relationship IfcRelVoidsElement is generated.	X
	ConnectedFrom	IfcRelConnectsElements @RelatedElement	S[0:?]	Reference to the element connection relationship. The relationship then refers to the other element that is connected to this element.	X
	ContainedInStructure	IfcRelContainedInSpatialStructure @RelatedElements	S[0:1]	Containment relationship to the spatial structure element, to which the element is primarily associated. This containment relationship has to be hierachical, i.e. an element may only be assigned directly to zero or one spatial structure.
	PositionedFrom	IfcRelPositions @RelatingElement	S[0:1]	Indicates a constrained placement, where the ObjectPosition must match positioning defined according to the referenced positioning element.	X
IfcBuildingElement
IfcPlate
9	PredefinedType	IfcPlateTypeEnum	[0:1]	Predefined generic type for a plate that is specified in an enumeration. There may be a property set given specificly for the predefined types. NOTE The PredefinedType shall only be used, if no IfcPlateType is assigned, providing its own IfcPlateType.PredefinedType.	X
IfcPlateStandardCase

Definitions applying to Bridge View

Instance diagram

Plates are used to represent planar surfaces with primary function of resisting bending such as stiffeners or gusset plates. The general definition IfcPlate defines a fixed shape, while the subtype IfcPlateStandardCase allows for parametric resizing.

Concept usage

Material Layer Set Usage

The Material Layer Set Usage concept applies to this entity.

The material of the IfcPlateStandardCase is defined by IfcMaterialLayerSetUsage and attached by the IfcRelAssociatesMaterial.RelatingMaterial. It is accessible by the inverse HasAssociations relationship. Multi-layer plates can be represented by refering to several IfcMaterialLayer's within the IfcMaterialLayerSet that is referenced from the IfcMaterialLayerSetUsage.

Material information can also be given at the IfcPlateType, defining the common attribute data for all occurrences of the same type. It is then accessible by the inverse IsDefinedBy relationship pointing to IfcPlateType.HasAssociations and via IfcRelAssociatesMaterial.RelatingMaterial.

The IfcPlateStandardCase defines in addition that the IfcPlateType should have a unique IfcMaterialLayerSet, that is referenced by the IfcMaterialLayerSetUsage assigned to all occurrences of this IfcPlateType.

Figure 185 illustrates assignment of IfcMaterialLayerSetUsage and IfcMaterialLayerSet to the IfcPlateStandardCase as the plate occurrence and to the IfcPlateType. The same IfcMaterialLayerSet shall be shared by many occurrences of IfcMaterialLayerSetUsage. This relationship shall be consistent to the relationship between the IfcPlateType and the IfcPlateStandardCase.

Material layer set and usage

Figure 185 — Plate type definition

As shown in Figure 106, the following conventions shall be met:

The reference coordinate system is the coordinate system established by the IfcExtrudedAreaSolid.Position.
The reference plane is the plane defined by the extruded profile of IfcExtrudedAreaSolid.SweptSolid. The IfcMaterialLayerSetUsage.OffsetFromReferenceLine is given as a distance from this plane.
The IfcMaterialLayerSetUsage.DirectionSense defines how the IfcMaterialLayer's are assigned to the reference plane. POSITIVE means in direction to the positive z-axis of the reference coordinate system.
The IfcMaterialLayerSetUsage.OffsetFromReferenceLine is the distance parallel to the reference plane and always perpendicular to the base (XY) plane of the reference coordinate system. This is independent of a potential non-perpendicular extrusion given by IfcExtrudedAreaSolid.ExtrudedDirection <> 0.,0.,1. A positive value of IfcMaterialLayerSetUsage.OffsetFromReferenceLine would then point into the positive z-axis of the reference coordinate system.
The Thickness of each IfcMaterialLayer shall be the parallel distance (measured perpendicular to the base plane). The TotalThickness of the IfcMaterialLayerSet is the sum of all layer thicknesses and in case of a perpendicular extrusion identical with IfcExtrudedAreaSolid.Depth
The IfcMaterialLayerSetUsage.LayerSetDirection i always AXIS3.

Figure 186 — Plate material layers

Body SweptSolid Geometry

The Body SweptSolid Geometry concept applies to this entity.

The following additional constraints apply to the swept solid representation:

Solid: IfcExtrudedAreaSolid is required,
Profile: IfcArbitraryClosedProfileDef, IfcRectangleProfileDef, IfcRoundedRectangleProfileDef, IfcCircleProfileDef, IfcEllipseProfileDef shall be supported.
Extrusion: The profile can be extruded perpendicularly or non-perpendicularly to the plane of the swept profile.
Material: The definition of the IfcMaterialLayerSetUsage, particularly of the OffsetFromReferenceLine and the ForLayerSet.TotalThickness, has to be consistent to the 'SweptSolid' representation.

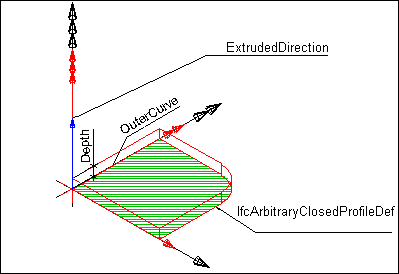

	EXAMPLE Figure 186 illustrates a 'SweptSolid' geometric representation. The following interpretation of dimension parameter applies for polygonal plates (in ground floor view): IfcArbitraryClosedProfileDef.OuterCurve being a closed bounded curve is interpreted as area (or foot print) of the plate.
Figure 186 — Plate body extrusion

Body Clipping Geometry

The Body Clipping Geometry concept applies to this entity.

The following constraints apply to the 'Clipping' representation:

Solid: see 'SweptSolid' shape representation,
Profile: see 'SweptSolid' shape representation,
Extrusion: see 'SweptSolid' shape representation,
Material: see 'SweptSolid' shape representation,
Boolean result: The IfcBooleanClippingResult shall be supported, allowing for Boolean differences between the swept solid (here IfcExtrudedAreaSolid) and one or several IfcHalfSpaceSolid.

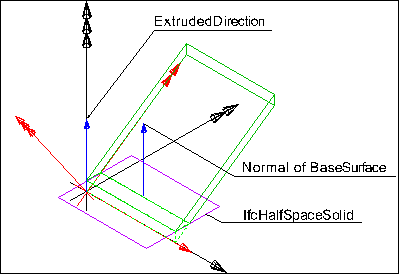

	EXAMPLE Figure 187 illustrates a 'Clipping' geometric representation with definition of a plate using advanced geometric representation. The profile is extruded non-perpendicular and the plate body is clipped at the eave.
Figure 187 — Plate body clipping

Concept inheritance

#	Concept	Model View
IfcRoot
	Software Identity	Bridge View
	User Identity	Bridge View
	Object Ownership	Bridge View
IfcObject
	Property Sets for Objects	Bridge View
IfcElement
	Element Occurrence Attributes	Bridge View
	Product Local Placement	Bridge View
IfcPlate
	Object Typing	Bridge View
	Quantity Sets	Bridge View
	Surface Connectivity	Bridge View
	Body SweptSolid Extruded Arbitrary Geometry	Bridge View
	Annotation 2D Geometry	Bridge View
	Product Assignment	Bridge View
	Element Nesting	Bridge View
IfcPlateStandardCase
	Material Layer Set Usage	Bridge View
	Body SweptSolid Geometry	Bridge View
	Body Clipping Geometry	Bridge View

Formal representations

XSD Specification

 <xs:element name="IfcPlateStandardCase" type="ifc:IfcPlateStandardCase" substitutionGroup="ifc:IfcPlate" nillable="true"/>

 <xs:complexType name="IfcPlateStandardCase">

  <xs:complexContent>

   <xs:extension base="ifc:IfcPlate"/>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcPlateStandardCase

 SUBTYPE OF (IfcPlate);

 WHERE

  HasMaterialLayerSetUsage : SIZEOF (QUERY(temp <* USEDIN(SELF, 'IFCKERNEL.IFCRELASSOCIATES.RELATEDOBJECTS') |
              ('IFCPRODUCTEXTENSION.IFCRELASSOCIATESMATERIAL' IN TYPEOF(temp)) AND
              ('IFCMATERIALRESOURCE.IFCMATERIALLAYERSETUSAGE' IN TYPEOF(temp.RelatingMaterial))
              )) = 1;
END_ENTITY;

 EXPRESS-G diagram

Link to this page

Item	SPF	XML	Change	Description
IFC2x3 to IFC4
IfcPlateStandardCase			ADDED
IFC4x1 to IFC4x2
IfcPlateStandardCase
PositionedFrom			ADDED
