Natural language names
 | Verschiebung und/ oder Verdrehung |
 | Structural Load Single Displacement |
| Verschiebung und/ oder Verdrehung |
| Structural Load Single Displacement |
Instances of the entity IfcStructuralLoadSingleDisplacement shall be used to define displacements.
HISTORY New entity in IFC2x2.
| # | Attribute | Type | Cardinality | Description | B |
|---|---|---|---|---|---|
| 2 | DisplacementX | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 3 | DisplacementY | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 4 | DisplacementZ | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 5 | RotationalDisplacementRX | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 6 | RotationalDisplacementRY | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 7 | RotationalDisplacementRZ | - | This attribute is out of scope for this model view definition and shall not be set. |
| # | Attribute | Type | Cardinality | Description | B |
|---|---|---|---|---|---|
| IfcStructuralLoad | |||||
| 1 | Name | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| IfcStructuralLoadOrResult | |||||
| IfcStructuralLoadStatic | |||||
| IfcStructuralLoadSingleDisplacement | |||||
| 2 | DisplacementX | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 3 | DisplacementY | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 4 | DisplacementZ | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 5 | RotationalDisplacementRX | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 6 | RotationalDisplacementRY | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 7 | RotationalDisplacementRZ | - | This attribute is out of scope for this model view definition and shall not be set. | ||
<xs:element name="IfcStructuralLoadSingleDisplacement" type="ifc:IfcStructuralLoadSingleDisplacement" substitutionGroup="ifc:IfcStructuralLoadStatic" nillable="true"/>
<xs:complexType name="IfcStructuralLoadSingleDisplacement">
<xs:complexContent>
<xs:extension base="ifc:IfcStructuralLoadStatic"/>
</xs:complexContent>
</xs:complexType>
ENTITY IfcStructuralLoadSingleDisplacement
SUPERTYPE OF(IfcStructuralLoadSingleDisplacementDistortion)
SUBTYPE OF (IfcStructuralLoadStatic);
DisplacementX : OPTIONAL IfcStrippedOptional;
DisplacementY : OPTIONAL IfcStrippedOptional;
DisplacementZ : OPTIONAL IfcStrippedOptional;
RotationalDisplacementRX : OPTIONAL IfcStrippedOptional;
RotationalDisplacementRY : OPTIONAL IfcStrippedOptional;
RotationalDisplacementRZ : OPTIONAL IfcStrippedOptional;
END_ENTITY;

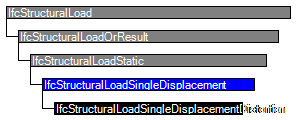

EXPRESS-G diagram
