Natural language names
 | Verschiebung und/ oder Verdrehung und/ oder Verwölbung |
 | Structural Load Single Displacement Distortion |
| Verschiebung und/ oder Verdrehung und/ oder Verwölbung |
| Structural Load Single Displacement Distortion |
Defines a displacement with warping.
HISTORY New entity in IFC2x2.
| # | Attribute | Type | Cardinality | Description | B |
|---|---|---|---|---|---|
| 8 | Distortion | - | This attribute is out of scope for this model view definition and shall not be set. |
| # | Attribute | Type | Cardinality | Description | B |
|---|---|---|---|---|---|

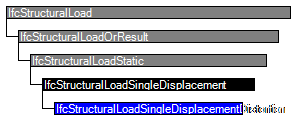

| IfcStructuralLoad | |||||
| 1 | Name | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| IfcStructuralLoadOrResult | |||||
| IfcStructuralLoadStatic | |||||
| IfcStructuralLoadSingleDisplacement | |||||
| 2 | DisplacementX | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 3 | DisplacementY | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 4 | DisplacementZ | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 5 | RotationalDisplacementRX | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 6 | RotationalDisplacementRY | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 7 | RotationalDisplacementRZ | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| IfcStructuralLoadSingleDisplacementDistortion | |||||
| 8 | Distortion | - | This attribute is out of scope for this model view definition and shall not be set. | ||
<xs:element name="IfcStructuralLoadSingleDisplacementDistortion" type="ifc:IfcStructuralLoadSingleDisplacementDistortion" substitutionGroup="ifc:IfcStructuralLoadSingleDisplacement" nillable="true"/>
<xs:complexType name="IfcStructuralLoadSingleDisplacementDistortion">
<xs:complexContent>
<xs:extension base="ifc:IfcStructuralLoadSingleDisplacement"/>
</xs:complexContent>
</xs:complexType>
ENTITY IfcStructuralLoadSingleDisplacementDistortion
SUBTYPE OF (IfcStructuralLoadSingleDisplacement);
Distortion : OPTIONAL IfcStrippedOptional;
END_ENTITY;
EXPRESS-G diagram
