Natural language names
 | Einzellast |
 | Structural Load Single Force |
| Einzellast |
| Structural Load Single Force |
Instances of the entity IfcStructuralLoadSingleForce shall be used to define the forces and moments of an action operating on a single point.
HISTORY New entity in IFC2x2.
| # | Attribute | Type | Cardinality | Description | B |
|---|---|---|---|---|---|
| 2 | ForceX | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 3 | ForceY | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 4 | ForceZ | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 5 | MomentX | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 6 | MomentY | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 7 | MomentZ | - | This attribute is out of scope for this model view definition and shall not be set. |
| # | Attribute | Type | Cardinality | Description | B |
|---|---|---|---|---|---|
| IfcStructuralLoad | |||||
| 1 | Name | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| IfcStructuralLoadOrResult | |||||
| IfcStructuralLoadStatic | |||||
| IfcStructuralLoadSingleForce | |||||
| 2 | ForceX | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 3 | ForceY | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 4 | ForceZ | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 5 | MomentX | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 6 | MomentY | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 7 | MomentZ | - | This attribute is out of scope for this model view definition and shall not be set. | ||
<xs:element name="IfcStructuralLoadSingleForce" type="ifc:IfcStructuralLoadSingleForce" substitutionGroup="ifc:IfcStructuralLoadStatic" nillable="true"/>
<xs:complexType name="IfcStructuralLoadSingleForce">
<xs:complexContent>
<xs:extension base="ifc:IfcStructuralLoadStatic"/>
</xs:complexContent>
</xs:complexType>
ENTITY IfcStructuralLoadSingleForce
SUPERTYPE OF(IfcStructuralLoadSingleForceWarping)
SUBTYPE OF (IfcStructuralLoadStatic);
ForceX : OPTIONAL IfcStrippedOptional;
ForceY : OPTIONAL IfcStrippedOptional;
ForceZ : OPTIONAL IfcStrippedOptional;
MomentX : OPTIONAL IfcStrippedOptional;
MomentY : OPTIONAL IfcStrippedOptional;
MomentZ : OPTIONAL IfcStrippedOptional;
END_ENTITY;

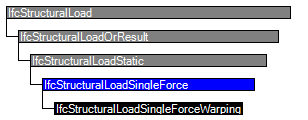

EXPRESS-G diagram
