Natural language names
 | Einzellast mit Wölbmoment |
 | Structural Load Single Force Warping |
| Einzellast mit Wölbmoment |
| Structural Load Single Force Warping |
Instances of the entity IfcStructuralLoadSingleForceWarping, as a subtype of IfcStructuralLoadSingleForce, shall be used to define an action operation on a single point. In addition to forces and moments defined by its supertype a warping moment can be defined.
HISTORY New entity in IFC2x2.
| # | Attribute | Type | Cardinality | Description | B |
|---|---|---|---|---|---|
| 8 | WarpingMoment | - | This attribute is out of scope for this model view definition and shall not be set. |
| # | Attribute | Type | Cardinality | Description | B |
|---|---|---|---|---|---|
| IfcStructuralLoad | |||||
| 1 | Name | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| IfcStructuralLoadOrResult | |||||
| IfcStructuralLoadStatic | |||||
| IfcStructuralLoadSingleForce | |||||
| 2 | ForceX | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 3 | ForceY | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 4 | ForceZ | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 5 | MomentX | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 6 | MomentY | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 7 | MomentZ | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| IfcStructuralLoadSingleForceWarping | |||||
| 8 | WarpingMoment | - | This attribute is out of scope for this model view definition and shall not be set. | ||
<xs:element name="IfcStructuralLoadSingleForceWarping" type="ifc:IfcStructuralLoadSingleForceWarping" substitutionGroup="ifc:IfcStructuralLoadSingleForce" nillable="true"/>
<xs:complexType name="IfcStructuralLoadSingleForceWarping">
<xs:complexContent>
<xs:extension base="ifc:IfcStructuralLoadSingleForce"/>
</xs:complexContent>
</xs:complexType>
ENTITY IfcStructuralLoadSingleForceWarping
SUBTYPE OF (IfcStructuralLoadSingleForce);
WarpingMoment : OPTIONAL IfcStrippedOptional;
END_ENTITY;

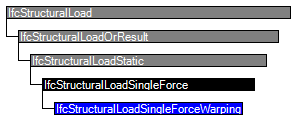

EXPRESS-G diagram
