![]() | Leuchte - Typ |
![]() | Light Fixture Type |
![]() | Type de fixation de lampe |
Item | SPF | XML | Change | Description | IFC2x3 to IFC4 |
---|---|---|---|---|
IfcLightFixtureType | ||||
OwnerHistory | MODIFIED | Instantiation changed to OPTIONAL. | ||
ApplicableOccurrence | MODIFIED | Type changed from IfcLabel to IfcIdentifier. |

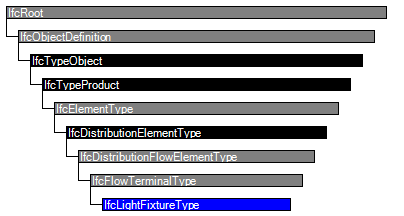

The flow terminal type IfcLightFixtureType defines commonly shared information for occurrences of light fixtures. The set of shared information may include:
It is used to define a light fixture type specification indicating the specific product information that is common to all occurrences of that product type. The IfcLightFixtureType may be declared within IfcProject or IfcProjectLibrary using IfcRelDeclares and may be exchanged with or without occurrences of the type. Occurrences of IfcLightFixtureType are represented by instances of IfcLightFixture. Refer to the documentation at IfcLightFixture for supported property sets, materials, composition, and ports.
# | Attribute | Type | Cardinality | Description | B |
---|---|---|---|---|---|
10 | PredefinedType | IfcLightFixtureTypeEnum | [1:1] |
Identifies the predefined types of light fixture from which the type required may be set. | X |
# | Attribute | Type | Cardinality | Description | B |
---|---|---|---|---|---|
IfcRoot | |||||
1 | GlobalId | IfcGloballyUniqueId | [1:1] | Assignment of a globally unique identifier within the entire software world. | X |
2 | OwnerHistory | IfcOwnerHistory | [0:1] |
Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE only the last modification in stored - either as addition, deletion or modification. | X |
3 | Name | IfcLabel | [0:1] | Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. | X |
4 | Description | IfcText | [0:1] | Optional description, provided for exchanging informative comments. | X |
IfcObjectDefinition | |||||
HasAssignments | IfcRelAssigns @RelatedObjects | S[0:?] | Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups. | X | |
Nests | IfcRelNests @RelatedObjects | S[0:1] | References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only). | ||
IsNestedBy | IfcRelNests @RelatingObject | S[0:?] | References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types). | X | |
HasContext | IfcRelDeclares @RelatedDefinitions | S[0:1] | References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object. | ||
IsDecomposedBy | IfcRelAggregates @RelatingObject | S[0:?] | References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts). | X | |
Decomposes | IfcRelAggregates @RelatedObjects | S[0:1] | References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only). | X | |
HasAssociations | IfcRelAssociates @RelatedObjects | S[0:?] | Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification. | X | |
IfcTypeObject | |||||
5 | ApplicableOccurrence | - | This attribute is out of scope for this model view definition and shall not be set. | ||
6 | HasPropertySets | IfcPropertySetDefinition | S[1:?] |
Set | X |
Types | IfcRelDefinesByType @RelatingType | S[0:1] | Reference to the relationship IfcRelDefinedByType and thus to those occurrence objects, which are defined by this type. | ||
IfcTypeProduct | |||||
7 | RepresentationMaps | IfcRepresentationMap | ~L[1:?] | List of unique representation maps. Each representation map describes a block definition of the shape of the product style. By providing more than one representation map, a multi-view block definition can be given. | X |
8 | Tag | - | This attribute is out of scope for this model view definition and shall not be set. | ||
ReferencedBy | IfcRelAssignsToProduct @RelatingProduct | S[0:?] | Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product type. | ||
IfcElementType | |||||
9 | ElementType | - | This attribute is out of scope for this model view definition and shall not be set. | ||
IfcDistributionElementType | |||||
IfcDistributionFlowElementType | |||||
IfcFlowTerminalType | |||||
IfcLightFixtureType | |||||
10 | PredefinedType | IfcLightFixtureTypeEnum | [1:1] |
Identifies the predefined types of light fixture from which the type required may be set. | X |
This entity is used to capture definitions of light fixtures, which includes fixtures for street lighting anchored to railings or bridge decks, as well as any other lighting attached or embedded within abutments or piers.
As geometry for light fixtures is typically of complex nature and provided by manufacturers in the form of tessellated models, a tessellated representation may capture any arbitrary shape.
Light fixtures may also define lighting power, direction, and color with an optional lighting representation.
Type Body Tessellated Geometry
The Type Body Tessellated Geometry concept applies to this entity.
As light fixtures for bridges are manufactured products and typically have complex geometry, the parameters for such geometry are out of scope. Therefore, tessellated representations are to be used.
Exchange | ![]() |
![]() |
![]() |
![]() |
---|---|---|---|---|
Import | O | |||
Export | O |
Type Lighting Geometry
The Type Lighting Geometry concept applies to this entity.
Lighting information may be defined to indicate lighting requirements and rendering.
Exchange | ![]() |
![]() |
![]() |
![]() |
---|---|---|---|---|
Import | O | |||
Export | O |
# | Concept | Model View |
---|---|---|
IfcRoot | ||
Software Identity | Bridge View | |
User Identity | Bridge View | |
Object Ownership | Bridge View | |
IfcTypeObject | ||
Property Sets for Types | Bridge View | |
IfcLightFixtureType | ||
Type Body Tessellated Geometry | Bridge View | |
Type Lighting Geometry | Bridge View |
<xs:element name="IfcLightFixtureType" type="ifc:IfcLightFixtureType" substitutionGroup="ifc:IfcFlowTerminalType" nillable="true"/>
<xs:complexType name="IfcLightFixtureType">
<xs:complexContent>
<xs:extension base="ifc:IfcFlowTerminalType">
<xs:attribute name="PredefinedType" type="ifc:IfcLightFixtureTypeEnum" use="optional"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
ENTITY IfcLightFixtureType
SUBTYPE OF (IfcFlowTerminalType);
PredefinedType : IfcLightFixtureTypeEnum;
WHERE
CorrectPredefinedType : (PredefinedType <> IfcLightFixtureTypeEnum.USERDEFINED) OR
((PredefinedType = IfcLightFixtureTypeEnum.USERDEFINED) AND EXISTS(SELF\IfcElementType.ElementType));
END_ENTITY;
