IfcCoveringType

Natural language names
deBekleidung / Belag - Typ
enCovering Type
frRevêtement type
Change log
ItemSPFXMLChangeDescription
IFC2x3 to IFC4
    IfcCoveringTypeMOVEDSchema changed from IFCPRODUCTEXTENSION to IFCSHAREDBLDGELEMENTS.
      OwnerHistoryMODIFIEDInstantiation changed to OPTIONAL.
      ApplicableOccurrenceMODIFIEDType changed from IfcLabel to IfcIdentifier.
Semantic definitions at the entity
Entity definition

The element type IfcCoveringType defines commonly shared information for occurrences of coverings. The set of shared information may include:

It is used to define an covering specification or covering style (i.e. the specific product information, that is common to all occurrences of that product type). Covering types may be exchanged without being already assigned to occurrences.

The occurrences of the IfcCoveringType are represented by instances of IfcCovering

HISTORY  New entity in IFC2x2.

Informal Propositions:

  1. The material assignment, if provided using the IfcRelAssociatesMaterial relationship, shall not reference IfcMaterialLayerSetUsage or IfcMaterialProfileSetUsage.
Attribute definitions
#AttributeTypeCardinalityDescription B
10PredefinedTypeIfcCoveringTypeEnum[1:1] Predefined types to define the particular type of the covering. There may be property set definitions available for each predefined type.X
Formal Propositions
RuleDescription
CorrectPredefinedTypeThe inherited attribute ElementType shall be provided, if the PredefinedType is set to USERDEFINED.
Inherited definitions from supertypes

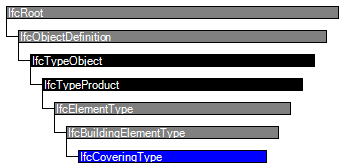

Entity inheritance IfcBuildingElementType IfcElementType IfcTypeProduct IfcTypeObject IfcObjectDefinition IfcRoot
Attribute inheritance
#AttributeTypeCardinalityDescriptionB
IfcRoot
1GlobalIdIfcGloballyUniqueId[1:1] Assignment of a globally unique identifier within the entire software world. X
2OwnerHistoryIfcOwnerHistory[0:1] Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE  only the last modification in stored - either as addition, deletion or modification.
X
3NameIfcLabel[0:1] Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. X
4DescriptionIfcText[0:1] Optional description, provided for exchanging informative comments.X
IfcObjectDefinition
HasAssignmentsIfcRelAssigns
@RelatedObjects		S[0:?]Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.X
NestsIfcRelNests
@RelatedObjects		S[0:1]References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).
IsNestedByIfcRelNests
@RelatingObject		S[0:?]References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types). X
HasContextIfcRelDeclares
@RelatedDefinitions		S[0:1]References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.
IsDecomposedByIfcRelAggregates
@RelatingObject		S[0:?]References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts). X
DecomposesIfcRelAggregates
@RelatedObjects		S[0:1]References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only). X
HasAssociationsIfcRelAssociates
@RelatedObjects		S[0:?]Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification.X
IfcTypeObject
5ApplicableOccurrence- This attribute is out of scope for this model view definition and shall not be set.
6HasPropertySetsIfcPropertySetDefinitionS[1:?] Set list of unique property sets, that are associated with the object type and are common to all object occurrences referring to this object type. X
TypesIfcRelDefinesByType
@RelatingType		S[0:1]Reference to the relationship IfcRelDefinedByType and thus to those occurrence objects, which are defined by this type.
IfcTypeProduct
7RepresentationMapsIfcRepresentationMap~L[1:?] List of unique representation maps. Each representation map describes a block definition of the shape of the product style. By providing more than one representation map, a multi-view block definition can be given.X
8Tag- This attribute is out of scope for this model view definition and shall not be set.
ReferencedByIfcRelAssignsToProduct
@RelatingProduct		S[0:?]Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product type.
IfcElementType
9ElementType- This attribute is out of scope for this model view definition and shall not be set.
IfcBuildingElementType
IfcCoveringType
10PredefinedTypeIfcCoveringTypeEnum[1:1] Predefined types to define the particular type of the covering. There may be property set definitions available for each predefined type.X
Definitions applying to Bridge View

 Instance diagram

Concept usage

Material Layer Set With Style

The Material Layer Set With Style concept applies to this entity.

The material of the IfcCoveringType is defined by IfcMaterialLayerSet for layer-based coverings or as fall back by IfcMaterial and attached by the IfcRelAssociatesMaterial.RelatingMaterial. It is accessible by the inverse HasAssociations relationship.

Exchange
Import O O
Export O O


Concept inheritance

#ConceptModel View
IfcRoot
Software IdentityBridge View
User IdentityBridge View
Object OwnershipBridge View
IfcTypeObject
Property Sets for TypesBridge View
IfcCoveringType
Material Layer Set With StyleBridge View
Formal representations
XSD Specification
 <xs:element name="IfcCoveringType" type="ifc:IfcCoveringType" substitutionGroup="ifc:IfcBuildingElementType" nillable="true"/>
 <xs:complexType name="IfcCoveringType">
  <xs:complexContent>
   <xs:extension base="ifc:IfcBuildingElementType">
    <xs:attribute name="PredefinedType" type="ifc:IfcCoveringTypeEnum" use="optional"/>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcCoveringType
 SUBTYPE OF (IfcBuildingElementType);
  PredefinedType : IfcCoveringTypeEnum;
 WHERE
  CorrectPredefinedType : (PredefinedType <> IfcCoveringTypeEnum.USERDEFINED) OR ((PredefinedType = IfcCoveringTypeEnum.USERDEFINED) AND EXISTS(SELF\IfcElementType.ElementType));
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram
