Natural language names
 | Stütze / Pfeiler - Typ |
 | Column Type |
 | Poteau type |
| Stütze / Pfeiler - Typ |
| Column Type |
| Poteau type |
| Item | SPF | XML | Change | Description | IFC2x3 to IFC4 |
|---|---|---|---|---|
| IfcColumnType | ||||
| OwnerHistory | MODIFIED | Instantiation changed to OPTIONAL. | ||
| ApplicableOccurrence | MODIFIED | Type changed from IfcLabel to IfcIdentifier. |
The element type IfcColumnType defines commonly shared information for occurrences of columns. The set of shared information may include:
It is used to define a column specification, or column style (i.e. the specific product information that is common to all occurrences of that column type). Column types may be exchanged without being already assigned to occurrences.
Occurrences of the IfcColumnType within building models are represented by instances of IfcColumnStandardCase if the IfcColumnType has a single associated IfcMaterialProfileSet; otherwise they are represented by instances of IfcColumn. Occurrences of the IfcColumnType within structural analysis models are represented by instances of IfcStructuralCurveMember, or its applicable subtypes.
HISTORY New entity in IFC2x2.

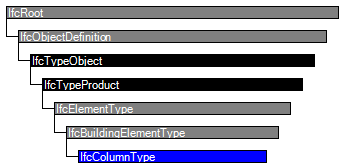

| # | Attribute | Type | Cardinality | Description | B |
|---|---|---|---|---|---|
| 10 | PredefinedType | IfcColumnTypeEnum | [1:1] | Identifies the predefined types of a column element from which the type required may be set. | X |
| Rule | Description |
|---|---|
| CorrectPredefinedType | The inherited attribute ElementType shall be provided, if the PredefinedType is set to USERDEFINED. |
| # | Attribute | Type | Cardinality | Description | B |
|---|---|---|---|---|---|
| IfcRoot | |||||
| 1 | GlobalId | IfcGloballyUniqueId | [1:1] | Assignment of a globally unique identifier within the entire software world. | X |
| 2 | OwnerHistory | IfcOwnerHistory | [0:1] |
Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE only the last modification in stored - either as addition, deletion or modification. | X |
| 3 | Name | IfcLabel | [0:1] | Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. | X |
| 4 | Description | IfcText | [0:1] | Optional description, provided for exchanging informative comments. | X |
| IfcObjectDefinition | |||||
| HasAssignments | IfcRelAssigns @RelatedObjects | S[0:?] | Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups. | X | |
| Nests | IfcRelNests @RelatedObjects | S[0:1] | References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only). | ||
| IsNestedBy | IfcRelNests @RelatingObject | S[0:?] | References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types). | X | |
| HasContext | IfcRelDeclares @RelatedDefinitions | S[0:1] | References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object. | ||
| IsDecomposedBy | IfcRelAggregates @RelatingObject | S[0:?] | References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts). | X | |
| Decomposes | IfcRelAggregates @RelatedObjects | S[0:1] | References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only). | X | |
| HasAssociations | IfcRelAssociates @RelatedObjects | S[0:?] | Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification. | X | |
| IfcTypeObject | |||||
| 5 | ApplicableOccurrence | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| 6 | HasPropertySets | IfcPropertySetDefinition | S[1:?] |
Set | X |
| Types | IfcRelDefinesByType @RelatingType | S[0:1] | Reference to the relationship IfcRelDefinedByType and thus to those occurrence objects, which are defined by this type. | ||
| IfcTypeProduct | |||||
| 7 | RepresentationMaps | IfcRepresentationMap | ~L[1:?] | List of unique representation maps. Each representation map describes a block definition of the shape of the product style. By providing more than one representation map, a multi-view block definition can be given. | X |
| 8 | Tag | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| ReferencedBy | IfcRelAssignsToProduct @RelatingProduct | S[0:?] | Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product type. | ||
| IfcElementType | |||||
| 9 | ElementType | - | This attribute is out of scope for this model view definition and shall not be set. | ||
| IfcBuildingElementType | |||||
| IfcColumnType | |||||
| 10 | PredefinedType | IfcColumnTypeEnum | [1:1] | Identifies the predefined types of a column element from which the type required may be set. | X |
Columns are used to represent linear members with primary function of vertical axial loading such as the vertical portion of a pier. The general definition IfcColumn defines a fixed shape, while the subtype IfcColumnStandardCase allows for parametric resizing.
Material Profile Set
The Material Profile Set concept applies to this entity.
The material of the IfcColumnType is defined by the IfcMaterialProfileSet or as fall back by IfcMaterial and attached by the IfcRelAssociatesMaterial.RelatingMaterial. It is accessible by the inverse HasAssociations relationship.
NOTE It is illegal to assign an IfcMaterial to an IfcColumnType, if there is at least one occurrences of IfcColumnStandardCase for this type.
The shared profile definition is defined by assigning an IfcMaterialProfileSet (see material use definition above). The IfcMaterialProfile refers to the subtype of IfcProfileDef that is the common profile for all column occurrence, if used. It is only applicable if the IfcColumnType has only occurrences of type IfcColumnStandardCase (see definition of IfcColumnStandardCase for further information).
NOTE The attribute ProfileName of the IfcProfileDef subtype, referenced in IfcMaterialProfile should contain a standardized profile name according to local standards. However, an additional geometric representation of the profile is necessary (e.g. as IfcExtrudedAreaSolid). An importing application is allowed to check for the existence of the profile name: in case of identifying it as a standardized name, the corresponding profile geometry and possibly other cross sectional properties can be read from a library. Otherwise the geometric representation and possible non geometric IfcProfileProperties have to be used.
| Exchange |  |
 |
 |
 |
|---|---|---|---|---|
| Import | O | O | ||
| Export | O | O |
| # | Concept | Model View |
|---|---|---|
| IfcRoot | ||
| Software Identity | Bridge View | |
| User Identity | Bridge View | |
| Object Ownership | Bridge View | |
| IfcTypeObject | ||
| Property Sets for Types | Bridge View | |
| IfcColumnType | ||
| Material Profile Set | Bridge View | |
Instance diagram <xs:element name="IfcColumnType" type="ifc:IfcColumnType" substitutionGroup="ifc:IfcBuildingElementType" nillable="true"/>
<xs:complexType name="IfcColumnType">
<xs:complexContent>
<xs:extension base="ifc:IfcBuildingElementType">
<xs:attribute name="PredefinedType" type="ifc:IfcColumnTypeEnum" use="optional"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
ENTITY IfcColumnType
SUBTYPE OF (IfcBuildingElementType);
PredefinedType : IfcColumnTypeEnum;
WHERE
CorrectPredefinedType : (PredefinedType <> IfcColumnTypeEnum.USERDEFINED) OR
((PredefinedType = IfcColumnTypeEnum.USERDEFINED) AND EXISTS(SELF\IfcElementType.ElementType));
END_ENTITY;
